GYTS 12/ 24 /48/ 96 Core Single Mode Fiber Optic Cable

Model Number GYTS

Number of Conductors≥ 10

Fiber count 2-288 Cores

Application Outdoor duct and conduit

Description

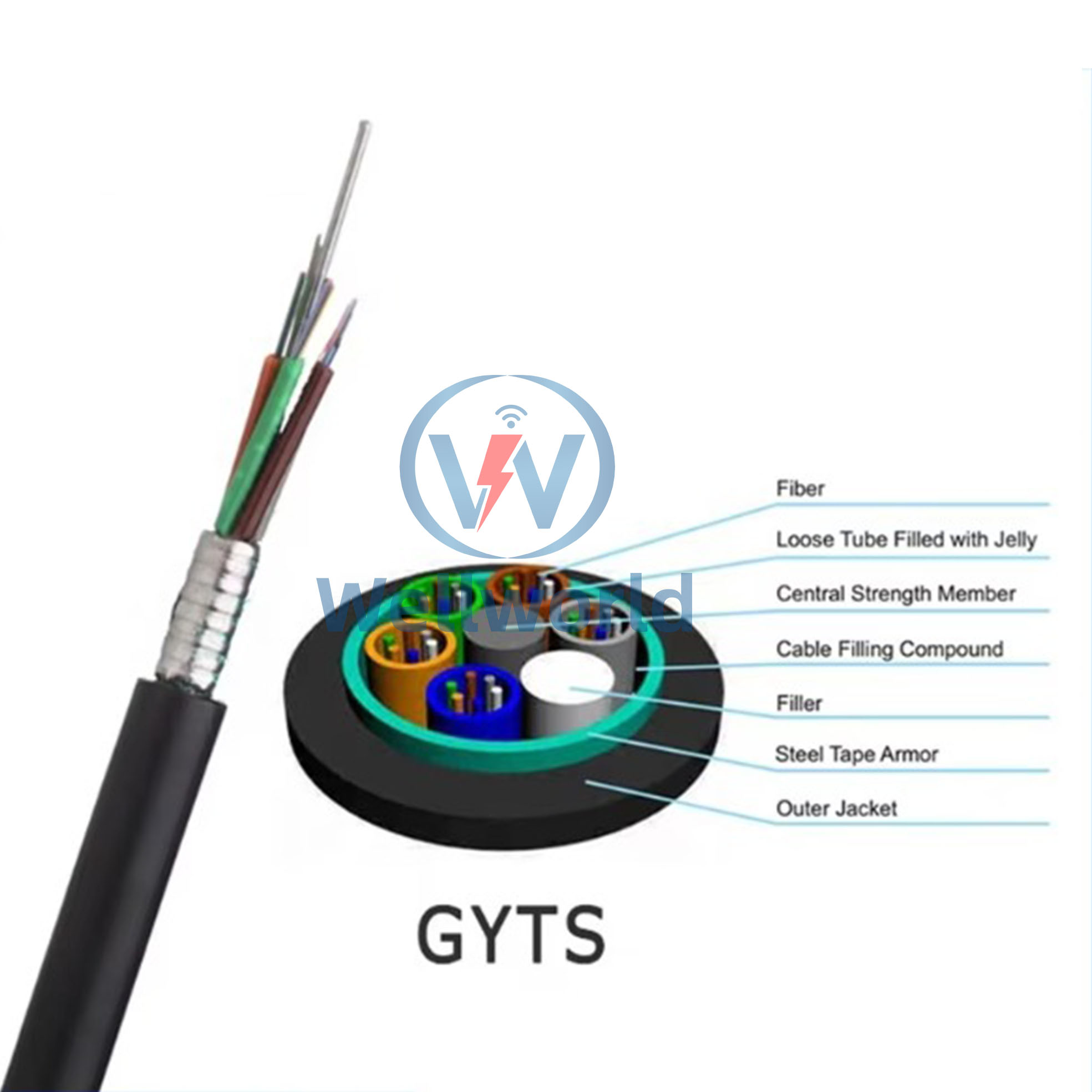

Product Construction:

Fiber: 2-288fibers
250µm colored fiber
Multi-loose tube gel-filled
Steel Tape Armored
Central Strength Member: Fiberglass reinforced plastic (FRP)
Outer Jacket: Black UV and waterproof polyethylene (PE).

Features

All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provides high tensile strength.
UV and waterproof design.

Applications

Inter building voice or data communication backbones.
Installed as ducts, underground conduits and direct buried.

Optical Charateristics

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of(Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of(Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~30	9.7	76	6	5	1500	600	1000	300
32~48	10.7	90	8	6	1500	600	1000	300
50~72	11.6	110	12	6	2000	600	1000	300
74~96	13.0	135	12	8	2000	600	1000	300
98~144	15.1	190	12	12	2000	600	1000	300
