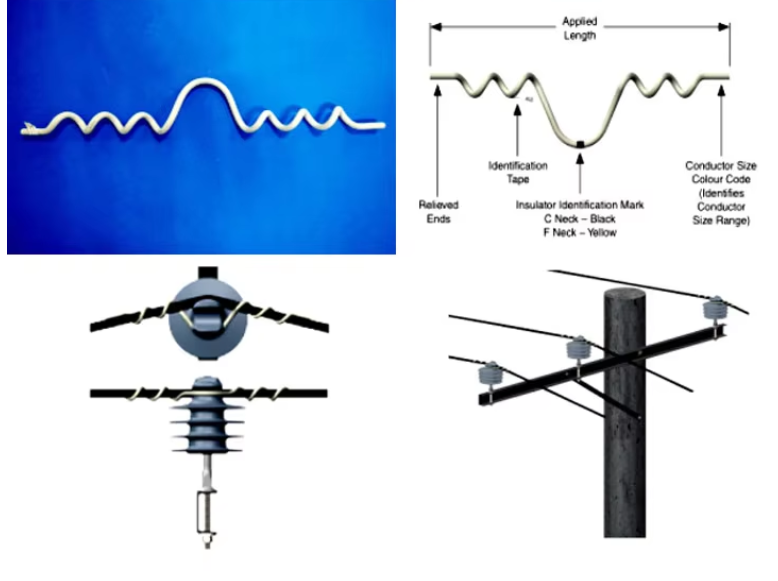

PVC Plastic Single Side insulator Tie

Description:

PVC plastic single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction.Line angles of up to 15°can be accommodated when used with any plastic covered conductors.

Material:

PVC plastic single side ties are made from white PVC.This material was selected for UV resistance,tensile strength,impact strength, flexural strength and self-extinguishing properties.

Application: voltage to 15kV

Mechanical:PVC plastic single side ties will develop unbalanced and lift-off loads equivalent to,or in excess of, a hand tie over covered conductor.

Insulator:57mm(C neck),73mm(F neck).  PVC plastic single side ties are used with either ANSI compliant polymer or porcelain insulators.
