52-3 Porcelain Disc Suspension Insulator

Description

Product Description

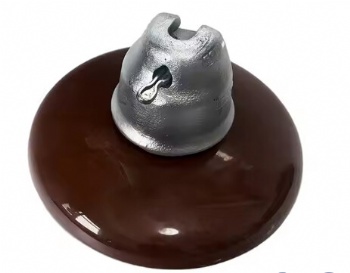

52-3 insularor- .jpg

Suspension type insulators mechanically hold the conductor thus isolating it from contact with land and other conductors. suspensions support mechanical and electrical charges ranging from 10,000 to 50,000 lbs. and are available in all tension levels, for both distribution and transmission systems.

Porcelain suspensions are specifically designed to comply with ANSI Class (C29.2-1992) standards, ensuring the performance of both the electrical and mechanical functions, as well as to satisfy all dimensional specifications and applicable requirements.

Ball and socket type suspension porcelain insulators ( ANSI Class )
ANSI Class		52-3	52-5	52-8	52-11
Coupling size		Type B	Type J	Type K	Type K
Dimensions
Diameter(D)	mm	254	254	254	280
Spacing(H)	mm	146	146	146	155
Creepage distance	mm	320	320	320	380
Dry arcing distance	mm	197	197	197	216
Mechanical Values
Combined M&E strength	kN	67	111	178	222
Dry arcing distance	mm	197	197	197	216
Impact strength	N.m	6.2	10	11.3	11.3
Routine proof test load	kN	33.3	55.5	89	111
Time load test value	kN	44.5	67	107	134
Maximum working load	kN	33.3	55.5	89	111
Electrical Values
Low frequency dry flashover voltage	kV	80	80	80	80
Low frequency wet flashover voltage	kV	50	50	50	50
Critical impulse flashover voltage,positive	kV	125	125	125	125
Critical impulse flashover voltage,negative	kV	130	130	130	130
low frequency puncture voltage	kV	110	110	110	110
Radio influence Voltage Data
Test voltage RMS to ground	kV	10	10	10	10
Maximum RIV at 1000kHz	μv	50	50	50	50
Packing and Shipping Data
Net weight,approximate	kg	4.7	5.2	7.8	9.7
