24/36/48/72/96OPGW cores OPGW Cable fiber(Multiple loose tube)

Description

Original manufacturer OPGW 24 36 48 72 96 cores overhead OPGW Cable fiber optic cable

Multiple loose tube type

The fibers are placed cloosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose tube type is designed mostly for large fiber counts requirement over 48 cores with the maximum fiber counts reaching 96 cores. The multiple loose tube type can meet the requirement of huge cross and large current capacity

Technical Parameters

Product Number	Optical cable structure	Fiber Accounts	Aluminum clad steel section(㎡）	Cable diameter（mm)	Net weight (kg/km)	Rated breaking force(kN)
OPGW-24-40-54	6/3.0/20AS,Sus_tube 1/3.0	24	≈40	9.0	313	54
OPGW-24-50-35	6/3.2/20AS,Sus_tube 1/3.2	24	≈50	9.6	345	58
OPGW-36-50-35	6/3.4/40AS,Sus_tube 1/3.4	36	≈50	10.2	286	35
OPGW-36-50-67	6/3.4/20AS,Sus_tube 1/3.4	36	≈50	10.2	394	67
OPGW-48-60-39	6/3.6/40AS,Sus_tube 1/3.6	48	≈60	10.8	317	39
OPGW-48-60-73	6/3.6/20AS,Sus_tube 1/3.6	48	≈60	10.8	438	73
OPGW-48-70-77	6/3.6/40AS,Sus_tube 1/3.6	48	≈70	11.4	475	77
OPGW-48-70-42	6/3.6/40AS,Sus_tube 1/3.6	48	≈70	11.4	340	42
Temperature	Operation	-40℃~+70℃
Temperature	Installation	-10℃~+60℃

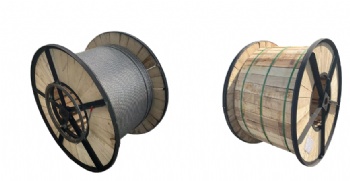

Packing & Delivery

OPGW 4.jpg
